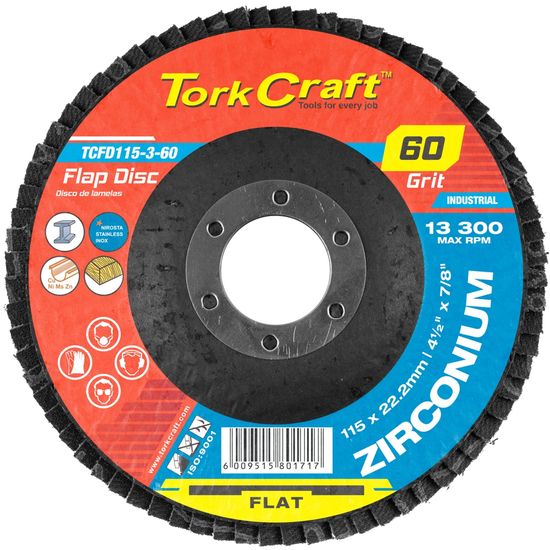

FLAP DISC ZIRCONIUM 115MM 60 GRIT FLAT

FLAP DISC ZIRCONIUM 115MM 60 GRIT FLAT
FLAP DISC ZIRCONIUM 115MM 60 GRIT FLAT
  • Stock: In Stock
  • Brand: TORK CRAFT
  • Model: TCFD115-3-60
  • Weight: 0.07kg
  • Dimensions: 115.00cm x 115.00cm x 8.00cm
  • SKU: TCFD115-3-60
  • UPC: 6009515801717
Products Sold: 0
Product Views: 16
R 37.20
Ex Tax: R 32.35
Flap disc

A flap disc is an abrasive tool made to fit onto an angle grinder to grind and finish in one operation.

SIZE: Ø115
GRIT: P60
SURFACE : Flat

Apply light pressure when finishing welds. The flap disc is flexible and will tend to follow the contours of whatever you are grinding.

What is grit?

Grits explained by Tork Craft When talking about sandpaper 'grit' is a reference to the number of abrasive particles per inch of sandpaper. The lower the grit the rougher the sandpaper and conversely, the higher the grit number the smoother the sandpaper.

This make sense if you imagine how small the particles on an 1000-grit sandpaper would need to be to fit into a 1' square (25,4mm square). Sandpaper is referred to by the size of its grit (Example 120-grit sandpaper or P120 sandpaper).

Flat or conical disc styles

Flap disc conical and flat

Flat
The flap disc has a flat surface for maximum efficiency when used at 0-15° angles. The flap disc is most suitable for grinding flat surfaces.

Conical
The flap disc has a slight conical surface for grinding at 10-25° angles. The flap disc is most suitable for grinding contoured surfaces.

Grit recommendation

Grit Materials
24-40 Aluminium, soft non ferrous metals, wood and plastic
36-50 Unalloyed or low alloyed steels, and low tensile strength stainless steels
60 High-alloyed, stainless and tempering steels
80 High-alloyed steels and fine finish on all metals
120 For extra fine finish on all materials

To extend the service life on a flap disc, lower the speed to half of the MAX rpm rated on the disc. This could extend the service life almost 100%. This can be accomplished by using a variable speed angle grinder.

Description Value
Size Ø 115mm
Grit P60
Bore 22.23mm
Max RPM 13,300 rpm
Bevel Flat
Flap disc

YouTube Grinder basics: Using a flap disc



Download the Leaflet:
View the Leaflet:
