Name: GAV RPF188R-1 Pressure Reducing Valve & Filter 1/2" with Universal Couplers
Brand: GAV
SKU: GAV RPF188R-1
Price: 1436.35 ZAR
Availability: InStock

GAV RPF188R-1 Pressure Reducing Valve & Filter 1/2" with Universal Couplers

Stock: In Stock
Brand: GAV
Model: GAV RPF188R-1 391388
Weight: 0.99kg
Dimensions: 313.00cm x 160.00cm x 110.00cm
SKU: GAV RPF188R-1
UPC: 8011275001885

Products Sold: 0

Product Views: 0

Based on 0 reviews. - Write a review

R 1,436.35

Ex VAT: R 1,249.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

GAV RPF188R-1 Pressure Reducing Valve & Filter 1/2" with Universal Couplers

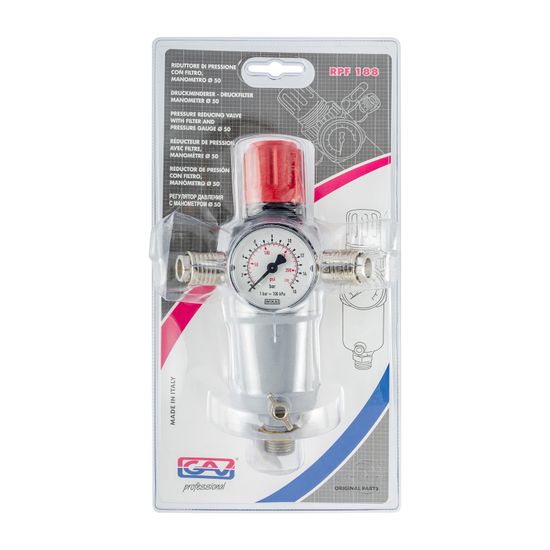

GAV RPF188R-1 is a pressure reducing valve with an integrated filter, Ø50 pressure gauge and two universal rapid couplers. It provides regulated and filtered compressed air for pneumatic systems, with a 1/2" BSP male connection.

The GAV RPF188R-1 combines pressure reduction and air filtration in a compact pneumatic air-treatment unit. It features a Ø50 pressure gauge, two universal rapid couplers and a 10 µm filter for removing contaminants from the compressed-air supply.

The RPF188R-1 provides an adjustable pressure range of 0–12 BAR, with a maximum inlet pressure of 16 BAR and a flow rate of 5,000 Nl/min at 6 BAR. The filter cup has a 50 ml capacity, making the unit suitable for higher-flow compressed-air installations.

Product Highlights

Pressure reducing valve with integrated filter
Ø50 pressure gauge
Two universal rapid couplers
Adjustable pressure range of 0–12 BAR
Maximum inlet pressure of 16 BAR
10 µm filtration
5,000 Nl/min flow at 6 BAR
50 ml filter cup capacity
1/2" BSP male connection
Made in Italy

Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Features

Pressure reduction: Regulates compressed-air pressure with an adjustable range of 0–12 BAR.
Integrated filtration: Provides 10 µm filtration to help remove contaminants from the compressed-air supply.
Ø50 pressure gauge: Provides pressure indication for monitoring the regulated air pressure.
Universal rapid couplers: Features two universal rapid couplers for convenient pneumatic connections.
High flow capacity: Provides a rated flow of 5,000 Nl/min at 6 BAR.
50 ml cup capacity: Provides the specified capacity for the filter cup.
1/2" BSP male connection: Provides connection to compatible pneumatic equipment.
Italian manufacture: Manufactured by GAV in Italy.

Recommended Applications

Compressed-air systems
High-flow pneumatic equipment
Workshop air-line installations
Air preparation before pneumatic tools and equipment
Filtered and regulated compressed-air supply
Industrial and general pneumatic applications

Extra Information

The GAV RPF188R-1 combines pressure reduction and filtration in one pneumatic air-treatment unit.
The model designation is RPF188R 1/2M.
The adjustment range is 0–12 BAR.
The maximum inlet pressure is 16 BAR.
The filtration rating is 10 µm.
The rated flow is 5,000 Nl/min at 6 BAR.
The filter cup capacity is 50 ml.
The unit has a Ø50 pressure gauge.
The unit is fitted with two universal rapid couplers.
The main connection is 1/2" BSP male.

Use compatible universal couplers and stay within the pressure limit. Ensure that the compressed-air supply does not exceed the 16 BAR maximum inlet pressure and that the 1/2" BSP connection and universal rapid couplers are compatible with the pneumatic installation before restoring system pressure.

Specifications

Description	Spec
Brand	GAV
Model	RPF188R-1
Product type	Pressure reducing valve & filter
Model designation	RPF188R 1/2M
Adjustment range	0–12 BAR
Maximum inlet pressure	16 BAR
Flow	5,000 Nl/min at 6 BAR
Filtration	10 µm
Filter cup capacity	50 ml
Pressure gauge	Ø50
Rapid couplers	2 x universal rapid couplers
Main thread	1/2" BSP male
Connection type	Universal rapid couplers
Country of manufacture	Italy
UPC	8011275001885

Contains:

1 x GAV RPF188R-1 pressure reducing valve & filter with universal couplers

Important: Depressurise the compressed-air system before installing, removing or servicing the pressure reducing valve and filter. Do not exceed the specified 16 BAR maximum inlet pressure. Ensure that the threaded connection and universal rapid couplers are correctly matched and securely installed before restoring system pressure.

Tags: GAV , RPF188R-1 , RPF188R , Pressure Reducing Valve , Filter , Filter Regulator , 1/2 inch , 1/2 BSP , Universal Coupler , Rapid Coupler , Pressure Gauge , ø50 , 10 micron , Pneumatics , Compressed Air , Ø50
