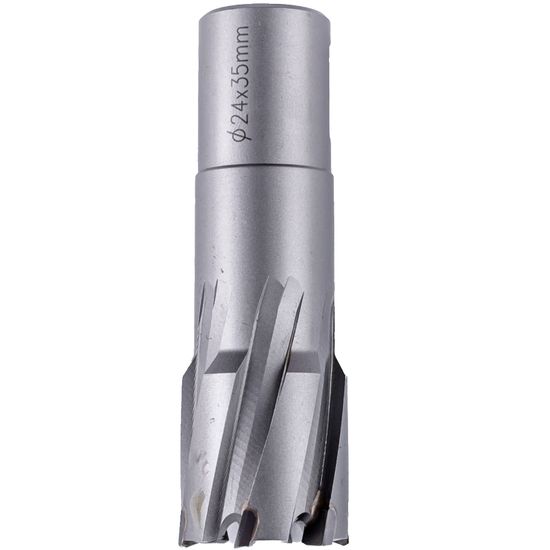

Annular Hole Cutter Tct 24 X 35mm Weld Shank 19.05mm

Features

• 24 mm diameter — ideal for larger anchor bolts, bushings and conduit holes.
• 35 mm cutting depth — effective for standard plate thicknesses and thin structural steels.
• 19.05 mm (3/4') Weldon shank — reliable two-flat drive for mag-drills.
• TCT (tungsten-carbide-tipped) teeth — designed for heavy duty cuts through steel and cast-iron with extended tool life.
• Thin-wall, multi-flute body — promotes rapid penetration and efficient chip removal.

Benefits

• High productivity: removes only a thin ring of material so faster cuts and less operator fatigue.
• Cleaner holes: fewer burrs and smoother finishes reduce post-drilling cleanup.
• Extended tool life: carbide tips maintain cut quality across many holes.
• Lower feed force: ideal for vertical or overhead operations where feed effort is crucial.

Extra Information

• Use with magnetic-base drill or compatible drill-press arbor with Weldon shank mounting.
• A pilot pin (sold separately) is required for centring the cutter and ejecting the slug.
• For stainless steel or harder material, apply adequate cutting fluid and maintain steady feed to protect carbide tips and prevent chip clogging.

Specifications

Safety

• Wear eye, ear and gloves protection; use cutting fluid to control heat and improve chip flow.
• Ensure the magnet is securely attached and the workpiece is stable before drilling; in overhead or elevated situations use additional anchoring.
• Do not use hammer action; feed steadily and allow the slug to eject—stop and clear chips if feed slows or juddering occurs.
• Disconnect power or disable magnet before changing cutters, shanks or pilot pins.
