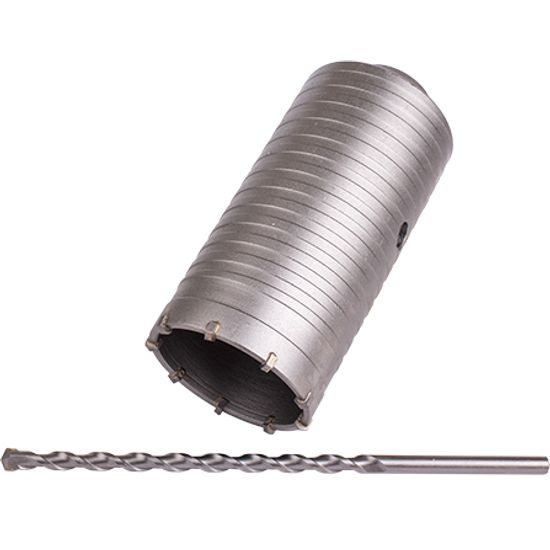

HOLLOW CORE BIT LONG TCT 70 X 150MM M22

HOLLOW CORE BIT LONG TCT 70 X 150MM M22
HOLLOW CORE BIT LONG TCT 70 X 150MM M22
  • Stock: In Stock
  • Brand: TORK CRAFT
  • Model: TC323070
  • Weight: 1.05kg
  • Dimensions: 150.00cm x 22.00cm x 22.00cm
  • SKU: TC323070
  • UPC: 6009515824211
Products Sold: 0
Product Views: 18
R 904.25
Ex Tax: R 786.30
TCT hollow core bit

Core diameter: Ø70mm
Depth: 150mm
Adaptor thread: M22

Application:

The hollow core bits are designed to be used with rotary hammers. It is used for boring out holes from Ø20 - Ø125mm in brickwork or aerated concrete.

Make sure to use the correct adaptor, length and thread for the hollow core bit.

Features:

  • The core bit has tungsten carbide teeth and a hardened steel body for maximum durability.
  • There are various adaptors available to fit on different rotary hammers (sold seperately).
  • There is a 72mm or 150mm length available.

Adaptors according to length:

110mm

TIP:
Clean out the hole by retracting the drill often to remove dust while drilling.

This will prolong the life of the core bit and the pilot drill bit.

TC322215 - SDS Plus adaptor 110mm x M16
TC322237 - SDS Plus adaptor 110mm x M22
TC322239 - Hex adator 110mm x M22
TC322216 - 13mm Hex adaptor 110mm x M16

200mm

TC322218 - SDS Plus adaptor 200mm x M16
TC322219 - 13mm Hex adaptor 200mm x M16
TC322222 - SDS Max adaptor 200mm x M16
TC322225 - SDS Plus adaptor 200mm x M22
TC322240 - 13mm Hex adaptor 200mm x M22

CAUTION:
The core bit should always be used with the supplied pilot drill bit.

The replacement pilot bit is TC322217 (short) for the TC322 core bits and TC323999 (long) for the TC323 core bits.

300mm

TC322223 - SDS Plus adaptor 300mm x M16
TC322224 - 11mm Hex adaptor 300mm x M16
TC322228 - SDS Plus adaptor 300mm x M22
TC322241 - Hex adaptor 300mm x M22
TC322243 - SDS Max adaptor 300mm x M22

400mm

TC322233 - SDS Plus adaptor 400mm x M22
TC322234 - SDS Max adaptor 300mm x M22

450mm

TC322238 - SDS Plus adaptor 450mm x M22
TC322242 - 13mm Hex adaptor 450mm x M22
TC322246 - SDS Plus adaptor 450mm x M22

A kit is also available - TC322010

Contents of kit in aluminium case:

  • (x1) Ø35mm x 72mm hollow core bit
  • (x1) ø50mm x 72mm hollow core bit
  • (x1) ø65mm x 72mm hollow core bit
  • (x1) ø80mm x 72mm hollow core bit
  • (x1) ø100mm x 72mm hollow core bit
  • (x1) SDS Plus adaptor 100mm
  • (x1) SDS Plus adaptor 300mm
  • (x1) SDS Max adaptor 300mm
  • (x1) Pilot drill bit and bolt
