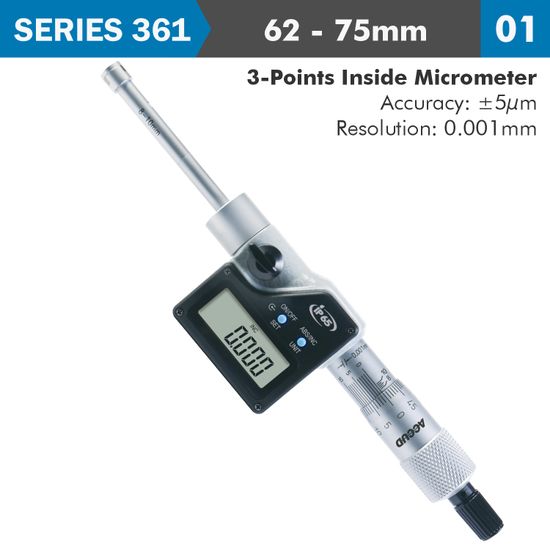

Name: DIG. 3 POINTS INSIDE MICROMETER 62-75MM 0.005MM ACC. 0.001MM RES.
Brand: ACCUD
SKU: AC361-011-01
Price: 25530.75 ZAR
Availability: InStock

DIG. 3 POINTS INSIDE MICROMETER 62-75MM 0.005MM ACC. 0.001MM RES.

Stock: In Stock
Brand: ACCUD
Model: AC361-011-01
Weight: 3.26kg
Dimensions: 196.00cm x 268.00cm x 268.00cm
SKU: AC361-011-01
UPC: 6009515860950

Products Sold: 0

Product Views: 5

Based on 0 reviews. - Write a review

R 25,530.75

Ex Tax: R 22,200.65

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

3 Point Digital Inside Micrometer 62mm - 75mm
SERIES 361

A precision measuring instrument designed to measure the internal dimensions of bores, holes, and other cylindrical spaces with a high degree of accuracy. Unlike traditional micrometers, which measure external dimensions, this tool specializes in gauging internal diameters. The digital display provides an easy-to-read measurement, improving accuracy and reducing the chances of human error.

Resolution: 0.001mm/0.00005'
IP65 protection level
Button: on/off, set, mm/inch, ABS/INC, data output
Automatic power off
Data output
Ratchet stop
Carbide measuring faces (over 12mm series)
Extension rod are included
Setting rings are included (Range < 100mm)

How it works:

Three-point contact: The micrometer has three measuring points that evenly distribute pressure on the inner surface of the hole, ensuring accurate and repeatable measurements.
Digital display: The measured diameter is displayed digitally, eliminating the need for manual reading and reducing the possibility of errors.
Extension rods: These can be used to measure deeper holes.

Applications

Machining and Metalworking: Used to measure the internal diameters of bores and holes in metal components, ensuring that they meet the required specifications.
Quality Control: Essential in inspection processes to verify the accuracy of internal dimensions in manufactured parts.
Engineering: Applied in various engineering tasks where precise internal measurements are critical, such as in the design and fabrication of mechanical parts.
Automotive and Aerospace Industries: Used for measuring the internal diameters of engine cylinders, bearing races, and other critical components that require precise tolerances.

Usage Procedure

Select the Appropriate Measuring Head: If the micrometer comes with interchangeable heads, choose the one that matches the range of the bore to be measured.
Zero the Micrometer: Set the micrometer to zero using a calibrated ring gauge or setting standard.
Insert into the Bore: Carefully insert the measuring head into the bore, ensuring that the three-point contacts are aligned with the bore's axis.
Expand the Measuring Points: Use the thimble to gently expand the measuring points until they make firm contact with the bore walls.
Read the Measurement: Observe the digital display for the internal diameter measurement. Ensure that the micrometer is properly centered in the bore for an accurate reading.
Record or Transfer Data: Record the measurement manually or transfer it to a connected device if using the data output feature.

Technical Specifications

Part No	Range	Accuracy	Setting Ring	Extension Rod	a	b	c	L
AC361-001-01	6-8mm/0.24-0.31'	4µm	ø6mm(included)	100mm	1.5	2.5	0	54.5
AC361-002-01	8-10mm/0.31-0.4'	4µm	ø8mm(included)	100mm	1.5	2.5	0	63
AC361-003-01	10-12mm/0.4-0.47'	4µm	ø10mm(included)	100mm	1.5	2.5	0	63
AC361-004-01	12-16mm/0.47-0.63'	4µm	ø16mm(included)	150mm	0.5	6	4.5	80
AC361-005-01	16-20mm/0.63-0.8'	4µm	ø16mm(included)	150mm	0.5	6	4.5	80
AC361-006-01	20-25mm/0.8-1'	4µm	ø25mm(included)	150mm	0.5	8	6	105
AC361-007-01	25-30mm/1-1.2'	4µm	ø25mm(included)	150mm	0.5	8	6	105
AC361-008-01	30-40mm/1.2-1.6'	4µm	ø40mm(included)	150mm	0.5	14	12	110
AC361-009-01	40-50mm/1.6-2'	5µm	ø40mm(included)	150mm	0.5	14	12	110
AC361-010-01	50-63mm/2-2.5'	5µm	ø62mm(included)	150mm	0.5	17.5	14.5	114
AC361-011-01	62-75mm/2.5-3'	5µm	ø62mm(included)	150mm	0.5	17.5	14.5	114
AC361-012-01	75-88mm/3-3.5'	5µm	ø87mm(included)	150mm	0.5	17.5	14.5	114
AC361-013-01	87-100mm/3.5-4'	5µm	ø87mm(included)	150mm	0.5	17.5	14.5	114
AC361-014-01	100-125mm/3.94-4.92'	6µm	optional	150mm	0.9	29	25	175
AC361-015-01	125-150mm/4.92-5.91'	6µm	optional	150mm	0.9	29	25	175
AC361-016-01	150-175mm/5.91-6.89'	7µm	optional	150mm	0.9	29	25	175
AC361-017-01	175-200mm/6.89-7.87'	7µm	optional	150mm	0.9	29	25	175
AC361-018-01	200-225mm/7.87-8.86'	8µm	optional	150mm	0.9	29	25	175
AC361-019-01	225-250mm/8.86-9.84'	8µm	optional	150mm	0.9	29	25	175
AC361-020-01	250-275mm/9.84-10.83'	9µm	optional	150mm	0.9	29	25	175
AC361-024-01	275-300mm/10.83-11.81'	9µm	optional	150mm	0.9	29	25	175

Installing the battery

Calibration of the Digital Three Points Inside Micrometer
