2-3 Days

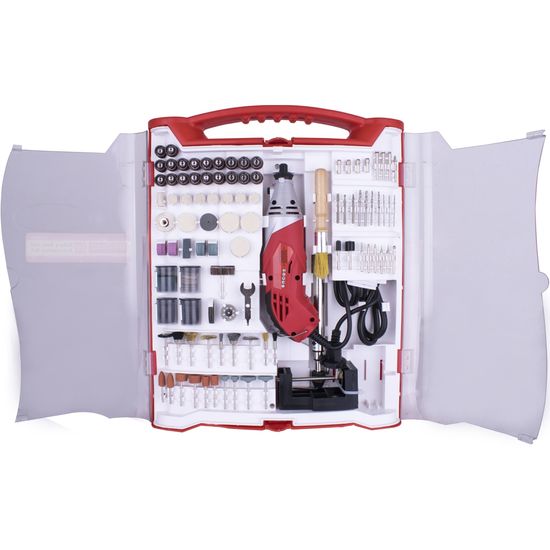

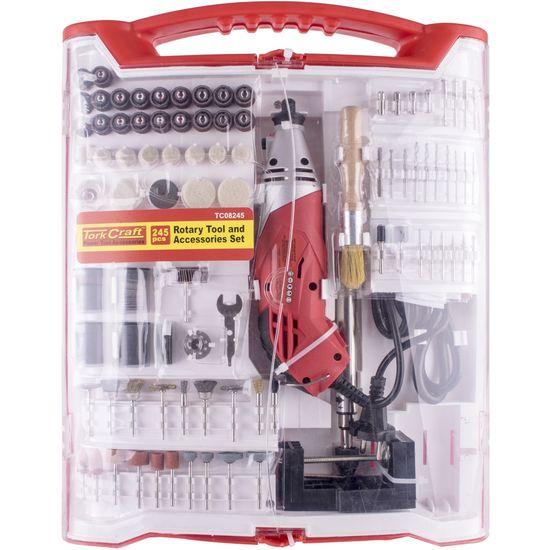

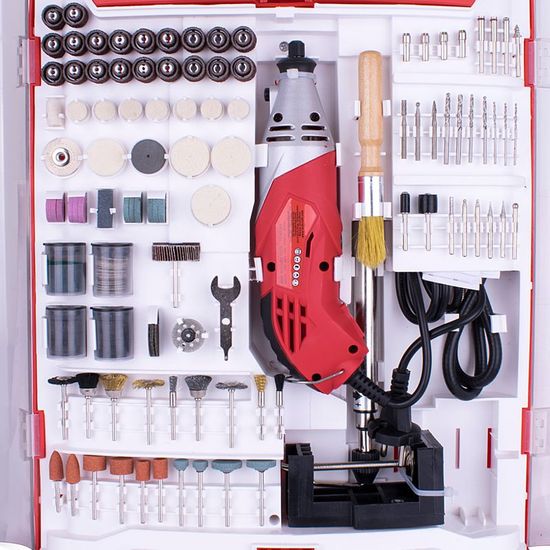

ROTARY TOOL 170W ACCESSORY SET 245PC WITH STAND AND FLEX SHAFT
- Stock: 2-3 Days
- Brand: TORK CRAFT
- Model: TC08245
- Weight: 3.04kg
- Dimensions: 360.00cm x 426.00cm x 426.00cm
- SKU: TC08245
- UPC: 6009675089659
Products Sold: 0
Product Views: 27
R 2,096.74
Ex Tax: R 1,823.25
245 Pc rotary mini tool kit
Rotary tool:
TCMT001
Wattage: 135W
Speed range: 8000 - 32500 rpm
Application:
The set includes the TCMT001 rotary tool with mini tool accessories.
The rotary tool can be used for:
- Cleaning
- Polishing
- Cutting
- Sanding
- Carving
Kits available:
| ORDER # | DESCRIPTION |
| TC08720 | 72 Pc accessories set |
| TC08172 | 172 Pc accessories set |
| TC08187 | 187 Pc accessories set |
| TC08245 | 245 Pc accessories set |
Optional accessories sets:
| ORDER # | DESCRIPTION |
| TC08070 | 70 Pc accessories set |
| TC08051 | 180 Pc accessories set |
| TC08022 | 22 Pc clean & polishing set |
| TC08034 | 34 Pc sanding & grinding set |
| TC08050 | 50 Pc cutting & carving set |
| TC08052 | 52 Pc general purpose set |
| TC08072 | 72 Pc cut-off wheel set |
Optional accessories
| ORDER # | DESCRIPTION |
| TCMT001DC | Drill chuck 0-3.2mm |
| TCMT001FS | Flexible shaft |
| TCMT001SS | Telescopic hang hook |
| TCMT001-2-3-1 | Collet with nut 3.2mm |
| TCMT001-2-3-2 | Collet with nut 2.3mm |
| TCMT001-2-3-3 | Collet with nut 1.6mm |
Spares for the rotary tool:
| ORDER # | DESCRIPTION |
| TCMT001-1 | Plastic nose piece |
| TCMT001-10-11-12 | Spindle lock |
| TCMT001-13 | On-off switch |
| TCMT001-16 | Var. speed switch |
| TCMT001-5 | Armature |
| TCMT001-8 | Stator (field coil) |
| TCMT001-9 | Carbon brush set |
Mini Tool Applications
| MINI TOOL | RPM | APPLICATION | PICTURE |
 |
9000 - 35000 | These mini tools can be used for cleaning, de-burring and grinding metals. It can also be used for sharpening lawn mower blades etc. |
 |
 |
9000 - 35000 | These mini tools are popularly used by gem enthusiasts. Stone, ceramics, glass and porcelain can easily be cleaned and polished. | |
 |
4500 - 11000 | The abrasive discs, drums and flapper discs are used for shaping and sanding wood and plastics. It can also be used for light de-burring metals. |
 |
 |
4500 - 26000 | ||
 |
4000 - 20000 | ||
 |
4500 - 20000 | ||
 |
18000 - 35000 | These mini bits are mostly used for engraving fine detail work on wood, jade, ceramics and glass. |
 |
 |
9000 - 35000 | Mini milling bits for milling into wood, soft metals and plastics. |
 |
 |
4500 - 35000 | Mini drill bits for drilling into wood, soft metals and plastics. | |
 |
4000 - 20000 | The felt and cloth tips are called buff tips and these mini tools fit on mandrels. The polishing compound is applied to the buff tip and it is used to remove fine scratch marks on plastics or metals. |
 |
 |
4000 - 15000 | The steel and brass mini tool brushes are used for cleaning and removing corrosion from metals. It can also be used to achieve a brushed finish on aluminium. |
 |
 |
9000 - 35000 | The mini tool cutting disc is great for cutting, sawing and carving hard materials. |
 |
 |
4500 - 35000 | These abrasive mini tools are used to cut plastic, wood and metals. |
 |
 |
The wrench is used for tightening the mini tool in the chuck. Make sure the collet is in place before tightening. |
 |
|
 |
The arbors are used to hold the sanding sleeves. The back end of the wrench is used to tighten the screw to secure the sanding sleeves on the arbor. |
 |
|
 |
The collet fits into the chuck to hold mini tools. The mini tool's shaft diameter needs to be the same as the collet's to fit. |
 |
|
 |
These mini tools are called mandrels. They are used to hold sanding discs, polishing buffs and grinding cut-off wheels. |
 |
|
 |
The stone is used to clean the mini tool grinding wheels. |
 |
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
|
|||
 |
 |
 |
 |
|
Wear Gloves
|
Eye Protection
|
Hearing Protection
|
Dust Mask
|
